Spinny S2300
Category: Packaging machines
Spinny S2300 is wrapping machine with motorised pre-stretch.
Product description
Contact
Spinny S2300

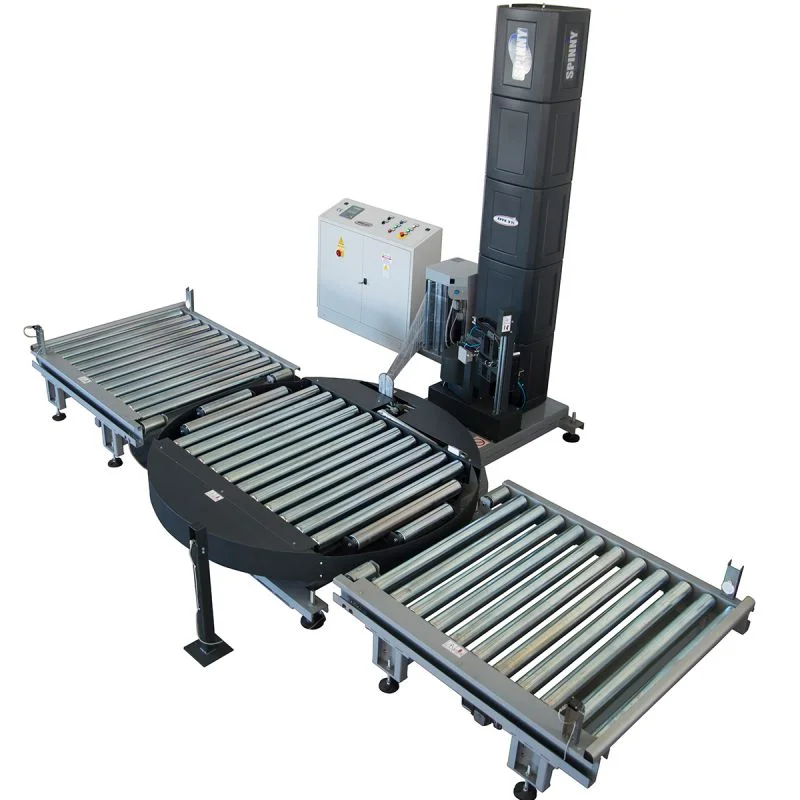

Spinny S2300 is wrapping machine with motorised pre-stretch for the perfect and best saving application of stretch film on your product. Wrapping machine with rotating table suitable for automatic packaging lines.SPECIFICATIONS:Pallet height detected by photocell
Motorized film pre-stretch with 1 or 2 motors
Variable speed of film carrier completely customizable
Working cycles controlled by PLC Siemens S7-1200 and control panel KP400
10 customizable working cycles
All motors controlled by inverter
Pallet dimensions 1200×1200 mm h=2400 mm
Load capacity 2000 kg
Tension 400V-50Hz
Automatic film cut systemOPTIONALS:Film welding system
Smart Touch control panel
A pre-stretch system for stretch film wrapping of pallets allows for efficient use of the stretch film, even for light or unsteady pallets. The stretch film is supplied in the correct amount by rollers operated by a motor, with an electronic system to keep tension constant on the entire pallet's surface. The motorized pre-stretch system can increase film efficiency up to 300%.The Dual Motor version of the system is designed for even greater film savings and economic benefits, with a variable stretch factor of up to 400%, while operating on the same principle as the single motor version.
